Modern Office Speed Gate Clear Acrylic Wing Turnstile Optical Sensor Access Control for Lobby and Co-working Space CE
제품 상세 정보
| 총중량 | 70kg | 순중량 | 65kg |
|---|---|---|---|
| 크기 | 1200*280*1000mm | 재료 | 304 녹슬지 않는 steel/316 녹슬지 않는 강철 |
| 패키지 크기 | 1280*370*1070mm | 통신 포트 | RS485,TCP/IP |
| 접이식 팔 길이 | 260 mm | 통과 속도 | 40명/분(개방), 25~30명/분(폐쇄) |
| 작동 전압 | AC220±10%V 50±10%HZ |
제품 설명

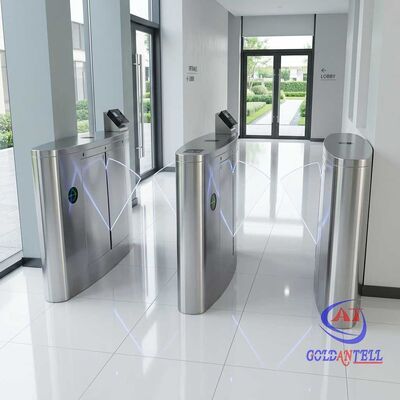

Modern Office Speed Gate Clear Acrylic Wing Turnstile
Optical Sensor Access Control for Lobby and Co-working Space CE Certified
Product Overview
Automatic Luxury Speed Gate for Office Building RFID Pedestrian entrance high-speed revolving door with face recognition capability.
- Optical Sensor Access Control: Ensures smooth and secure entry for office visitors
- Modern Design: Sleek and transparent acrylic wing turnstiles enhance aesthetics
- Lobby and Co-working Space Compatibility: Ideal for busy entrances
- CE Certified: Meets international safety standards for reliable performance
Technical Specifications
| Item | Details |
|---|---|
| Name | Bridge type flap turnstile |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after breakdown | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% (non-condensing) |
| Housing material | Domestic standard 304 # stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Project Applications
- Movie theaters
- Fitness halls
- Country clubs
- Fairgrounds
- Clubs
- Swimming halls
- Fitness gyms
- Hotels
- Factories
- Banks
- Hospitals
- Schools
Key Functions
- Rapid identification technique, accurately and efficiently recognizing magnetic cards, bar code cards, ID cards, and IC cards
- DC Brushless Motor, maintenance-free
- Auto-lift-arm function: the arm lifts automatically with an alert when power is restored
- Auto-drop-arm function: the arm drops down automatically (default) or allows free passing when power is off
- Automatic Reset Function: cancels authority automatically if the gate is not passed within a set time (adjustable from 1-60s)
Product Image
Frequently Asked Questions
How about your package?
Seaworthy wooden case + foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days.
Service & Support
- Friendly and professional customer service available within 16 hours
- Over 10 years of ODM/OEM capability, offering product shape design, custom logos, and packaging
- Comprehensive solutions including system software management to save time and costs
- Special repair service: no need to return products; video diagnosis and free spare parts within 1-year warranty
Key Advantages
- Security solution provider, saving time and costs
- High-quality products with competitive pricing, offering OEM and ODM services
- Professional technical support and excellent after-sales service
- Custom design shapes and logos; free for large orders
- Fast delivery and safe shipping methods
- 1-year warranty with lifetime technical support
- Quick response: 24-hour online service with replies within 8 hours
Access Control Options
- Supports fingerprint, face recognition, card reader, QR code, and barcode ticket systems
- Special functions: counter and coin-operation options
- ESD tester system integration available
