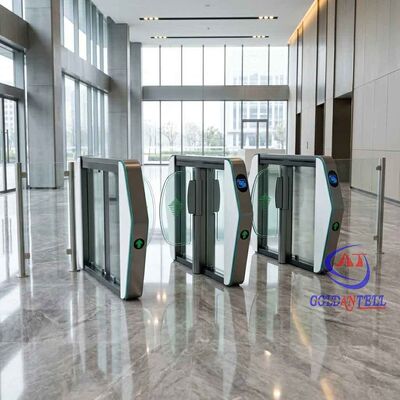

IP66 Waterproof Heavy Duty Swing Turnstile SUS304 Outdoor Perimeter Security Barrier with AI Face Recognition IC Card CE
제품 상세 정보
| 재료 | 304 스테인레스 스틸 | 크기 | 1400*200*1000mm |
|---|---|---|---|
| 제품명 | 보안상 소동 장애 회전식 십자문 게이츠 | 의사소통 | RS485 또는 TCP / IP |
| 애플리케이션 | Office\School\Airport\Subway\Outdoor, 아파트문 | 전원공급장치 | AC100V-240V |
| 근무 환경 | 실내 / 야외 (보호 시설) | 통로 폭 | 600mm |
제품 설명
IP66 Waterproof Heavy Duty Swing Turnstile SUS304 Outdoor Perimeter Security Barrier with AI Face Recognition IC Card CE
IP66 Waterproof Heavy Duty Swing Turnstile SUS304 Outdoor Perimeter Security Barrier with AI Face Recognition IC Card CE
Product Features
- IP66 Waterproof: Ensures secure operation in harsh environments
- Heat-Resistant: Operates efficiently in extreme temperatures
- Heavy Duty Design: Built for durability in high-traffic areas
- Automatic Speed Barrier: Facilitates smooth pedestrian flow
- Rapid identification for magnetic cards, barcode cards, ID cards, and IC cards
- DC Brushless Motor: Maintenance-free operation
- Auto-lift-arm function with power restoration alert
- Auto-drop-arm function during power loss
- Automatic reset functions with adjustable timing (1-60 seconds)
Technical Specifications
| Specification | Details |
|---|---|
| Cabinet Dimension | 1400 (L) x 85 (W) x 1000 (H) mm |
| Cabinet Material | 304 stainless steel (SUS316 custom option available) |
| Lane Length | Standard 600mm (customizable up to 900mm) |
| Flap Opening/Closing Time | 0.6 seconds |
| Passing Direction | Single in/out or Bidirectional |
| Drive Motor | Standard DC 24V brush motor (brushless or servo options available) |
| Access Readers | RFID cards, fingerprint, barcode, ticket scanners |
| Normal Running Times | 3 million cycles |
| Reset Time After Breakdown | Default 5 seconds (customizable) |
| IR Sensors | Standard 6 pairs (8 pairs, 10 pairs options available) |
Design
Key Advantages
- Professional OEM and ODM design services available
- CE approved with European government project experience
- Experienced sales team with over 4 years in turnstile industry
Packing & Delivery
- Carton package interior with two exterior options: crate package or closed wooden package
- Standard delivery: <10 pieces in 7 working days; >50 pieces in 10-15 working days
- Customized products require additional 2-3 working days
Application Projects
- Factories and industrial facilities
- Office buildings and corporate campuses
- Clubs and entertainment venues
- Intelligent communities and residential complexes
- Airports and transportation hubs
- Railway stations and public transit
- Docks and maritime facilities
- Scenic spots and tourist attractions
- Parks and recreational areas
- Student dormitories and educational institutions
- Pedestrian passages and public walkways
Service & Support
- Comprehensive security solutions to save time and costs
- Competitive pricing with OEM and ODM services
- Professional technical support and after-sales service
- Custom design shapes and logos (free for large quantities)
- Fast delivery with safe shipping methods
- One-year warranty from delivery date with lifetime technical support
- 24-hour online service with 8-hour response guarantee
Frequently Asked Questions
Q1. What is your terms of packing?
A: Protective film wrapping, followed by neutral cartons, and finally standard export wooden cases for perfect protection.
Q2. What is your terms of payment?
A: 100% payment before shipment; or 50% T/T deposit with 50% balance before delivery. Photos/videos of products and packages provided before final payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF terms available.
Q4. How about your delivery time?
A: Generally 7-9 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q5. Can you produce according to the samples?
A: Yes, production available based on your samples or technical drawings. We can create molds and fixtures as needed.
Q6. What is your sample policy?
A: Samples available from ready stock, with customers covering sample cost and courier charges.
Q7. Do you test all your goods before delivery?
A: Yes, 100% testing conducted before every delivery.
