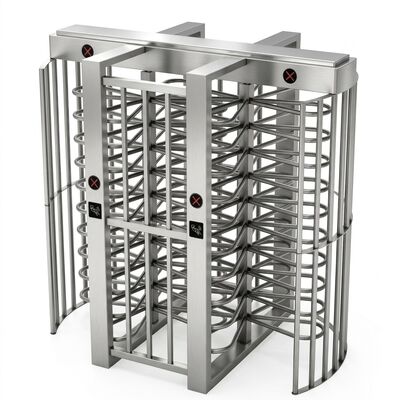

51=Four-arm 90 Degree Full Height Turnstile Heavy Duty Solenoid Locking High Security Gate for Military and Power Plant CE
| 원래 장소 | 광동, 중국 |
|---|---|
| 브랜드 이름 | Goldantell |
| 인증 | CE/ROHS/FCC/IS9001 |
| 모델 번호 | GAT-513 |
| 문서 | Full Catalog Of Full Height...te.pdf |
| 최소 주문 수량 | 1개 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 먼저 판지 상자에 포장한 다음 외부 포장용 수출 목재 케이스로 강화했습니다. |
| 배달 시간 | 귀하의 지불금을 받은 후 영업일 기준 7일 |
| 지불 조건 | 전신환, 서쪽 Union,L/C, 페이팔 |
| 공급 능력 | 달 당 2,000 PC |
제품 상세 정보
| 제품 크기 | 2350L*1350W*2300H(MM) | 재료 | 304 스테인레스 스틸 |
|---|---|---|---|
| 유형 | 이중 액세스 전체 높이 개찰구 | 순중량 | 200kg |
| 총중량 | 250kg | 호환 가능 | RFID Reader&Fingerprint 독자, 동전 접근, QR 부호 읽기장치, 바 코드 시스템, ESD 테스터 접근 제어, 멀리 있는 단추 |
| 통신 포트 | RS485, TCP/IP | 애플리케이션 | 감옥, 공장, 정부 등. |
| 패키지 | 4 packages,10CBM | 작동 전압 | AC220 ± 10%V, 50 ± 10%Hz |
| 작동 이동 | DC 24V 솔레노이드 밸브 | 통과 속도 | 30개 사람들 / 분 |
| 강조하다 | Four-arm full height turnstile with solenoid locking,Heavy duty full height turnstile for military,High security gate turnstile CE certified |
||
제품 설명
Four-Arm 90 Degree Full Height Turnstile
Heavy duty solenoid locking high security gate designed for military facilities, power plants, and other critical infrastructure. CE certified for quality assurance.
Product Overview
This full height turnstile represents advanced intelligent passageway management technology. Constructed from durable, rust-proof 304 stainless steel, it provides secure access control while maintaining comfortable passage space and preventing unauthorized entry.
Key Features
- Precision engineering for high-security applications
- Ideal for prisons, office buildings, government facilities, and statistical offices
- LED indicator lights for clear operation status visibility
- Compatible with various access control systems (RFID, fingerprint, QR code, etc.)
- Unique two-way anti-reverse function for enhanced security
- Programmable operating status via built-in control board
- Automatic reset function (1-60 seconds adjustable)
- Supports unidirectional or bidirectional access control
- Remote management capability via computer interface
- Customizable housing length and design options
- Adjustable normally open/closed settings
Technical Specifications
| Specification | Details |
|---|---|
| Size | 2350L × 1350W × 2300H (MM) or custom size |
| Communication Interface | Standard RS 485 interface, distance ≤1200m |
| Working Voltage | AC220±10%V, 50±10%HZ |
| Working Movement | DC 24 V solenoid valve |
| Reset Time After Breakdown | 10 seconds |
| Passage Width | ≤600 mm |
| Time of Opening | 0.2 second |
| Pass Speed | 30 persons/min |
| Time to Work After Power On | 3 seconds |
| Normal Running Life | 3 million cycles |
| LED Light | Direction arrow indicators |
| Working Environment | Indoor/outdoor (with tent) -25℃ to 70℃ |
| Housing Material | Domestic standard 304# stainless steel |
| Relative Humidity | ≤90% (non-condensing) |
| Input Interface | +12V level signal or pulse width >100 ms 12V pulse, drive current >10 mA |
Competitive Advantages
- 24-month quality guarantee for peace of mind
- OEM/ODM services available (custom designs, logos, and packaging)
- Comprehensive pre-sale and after-sale support
- Fast delivery times to meet project deadlines
- Professional engineering support for integration
- Special discounts for distributors and agents
Frequently Asked Questions
Can you do OEM service?
We offer comprehensive OEM services including custom turnstile designs (size, material, LED indicators), logo printing, and customized retail packaging. We can also create designs based on your specific requirements.
Is your turnstile compatible with different access control systems?
Yes, our intelligent turnstile works with various access controllers including RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software or systems.
What is your warranty and after-sales service policy?
We provide a 12-month quality guarantee and have English-speaking sales and support teams available to assist with any after-sales needs.
What are your lead times?
Standard items:
• 10-50 sets: 5 working days
• 50-100 sets: 7-10 working days
• 200-500 sets: 10-15 working days
Custom designs or packaging may require an additional 3-10 working days.
• 10-50 sets: 5 working days
• 50-100 sets: 7-10 working days
• 200-500 sets: 10-15 working days
Custom designs or packaging may require an additional 3-10 working days.
What payment methods do you accept?
We accept TT, Western Union, and L/C payments. Our company participates in Trade Assurance to protect your order security.
