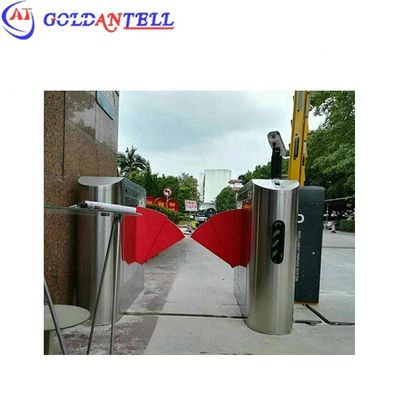

High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
궁금한 점이 있으시면 24시간 온라인 도움을 제공합니다.
x제품 상세 정보
| 배리어 개방 시간 | 0.2 Ｓ | 통신 인터페이스 | RS-232, RS485 |
|---|---|---|---|
| 작동 방향 | 2 방향 | 배리어 모터 | 브러시리스 모터 |
| 프레임워크 재료 | 304 등급 스테인레스 강 | 치수 | 1200*280*1000(mm) |
| 무게 | 150(kg) | 팔 길이 | 285(mm) |
| 전력 전압 | AC 110~240V, 50/60HZ | 드라이브 전압 | 24V |
| 통과 속도 | 분 당 사람들 30-40명 | 작업 온도 | -15 ° C-75 ° C |
| 스윙 각도 | 0' -180' | 상대 습도 | <95%, 결석 없음 |
| 보호 수업 | IP54 | ||
| 강조하다 | 0.2s Turnstile Gate,304 Grade Stainless Steel Speed Gate,RFID Interface Flap Barrier |
||
제품 설명
Entrance Control Flexible Security High Quality Electrical Standard Turnstile Flap Barrier Speed Gate with RFID Interface
High-quality electrical standard turnstile flap barrier speed gate with RFID interface for secure entrance control in various environments.
Specifications
| Item | Specification |
|---|---|
| Type | Auto |
| Dimension | 1200*280*1000mm |
| Power | AC 110~240 V, 50/60 HZ |
| Swing angle | 0°-180° |
| Operating Temperature | -15°C-75°C |
| Relative Humidity | <95%, No concretion |
| Communication Distance | ≤1200m |
| Passing Speed | 30-40 Persons/min |
| Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| Communication Connection | RS485 Communication |
| Material | SUS304 |
| Protection class | IP54 |
| Application | Subway Stations, bus stations, parks, schools, factories, Hoverports, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on |
Functions and Features
- Self-examine and alarm function for easy maintenance
- Programmable running status via main board keyboard
- Safety stop when blocked to prevent injuries
- Light and sound alarm for illegal intrusion detection
- Automatic arm locking until opening signal received
- Adjustable arm synchronization
- Automatic reset function with adjustable timing (default 10sec)
- Automatic opening when power off and closing when power on
- Compatible with multiple reader devices (IC/ID, fingerprint, barcode, facial recognition, etc.)
- Optional one-direction or bi-directional operation
- Remote control and management capability
Extendable Functions
- Optional counter
- Housing length options: 1.2m, 1.4m, or 1.6m
- Flap arm material options: acrylic glass, resin, PVC
- Flap arm color options: red, blue, yellow, colorless
Project Example
About Shenzhen Goldantell Technologies Co., Ltd
We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems. We have exported to more than 50 countries and established long-term partnerships with clients worldwide.
Global Customer Base
Our products have been successfully implemented in over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Options
- Sea freight: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Services
- 24-hour response to inquiries
- Fluent English-speaking sales and support team
- OEM services including logo printing and custom packaging
- Experienced engineering support
Pre-sale & After-sale Service
- Pre-sale consultation to understand your requirements
- Production updates with photos and testing videos
- Comprehensive installation and operation guidance
- Custom OEM/ODM services for product customization
- 16-hour response time for technical support
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin | Skype: goldantell02
Goldantell turnstiles - factory price, high quality, welcome your inquiry!
