| 배리어 개방 시간: | 0.2 Ｓ | 통신 인터페이스: | RS-232, RS485 |
|---|---|---|---|
| 작동 방향: | 2 방향 | 배리어 모터: | 브러시 된 모터 |
| 보호 수준: | IP54 | 전원 공급 장치: | 110 ~ 240 볼트, 50/60 Hz |
| 작업 온도: | -25C ~ +70C | 패스 속도: | 40개 사람들 / 분 |
| 재료: | 304 스테인레스 스틸 | 크기: | 1200*280*1000 mm |
| 총 체중: | 65kg | 플랩 개방 시간: | 1 초 안에 |
| 모터 드라이브: | DC 24V 브루치 모터 | 통로 너비: | 60cm |
| 재설정 시간: | 기본 10 | ||

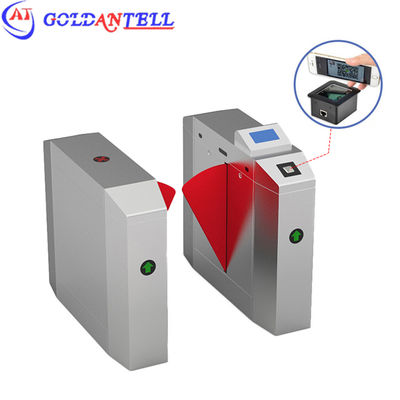

| 강조하다: | Brushed Motor Flap Turnstile,LED Light Color Optional Security Turnstile Gate,Attendance Record Access Control Turnstile |
||
| Item NO. | GAT-206 |
|---|---|
| Cabinet dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap opening/closing time | within 1 second |
| Drive Motor | DC 24v bruch motor |
| Passage width | 60cm |
| Movement type | Single motor or dual-motor according to actual situation |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s, can be changed to fit different demands |
| Working environment | indoor/outdoor (with a tent over) -10℃~70℃ |
| Option | Description |
|---|---|
| a. without | b. with |
| Option | Description |
|---|---|
| a. without | b. with |
Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience.
Our main products include intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps and related security access control systems. We have exported to more than 50 countries and built long-term partnerships with clients worldwide.
We offer comprehensive OEM services including custom designs for size, material, LED indicators, and retail packaging. We can create designs based on your specific requirements.
Yes, our turnstiles work with RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software.
We provide 12-month quality guarantee with professional English-speaking support for sales and after-sales service.
Standard items: 5-15 working days depending on quantity. Custom items require 3-10 additional working days.
We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.
Samples ship by air (3-5 days). Bulk orders ship by sea (7-60 days depending on destination).
