Intelligent Full Automatic QR Code Reader Security Turnstile Gate with 1-2 Year Warranty
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 디스플레이 유형 | 얼굴 디스플레이 LCD 화면 | 차선 너비 | 55-130cm |
|---|---|---|---|
| 차원 | 1400*200*1000mm (l*w*h) | 전원 공급 장치 | AC 110 ~ 240V 10% 50/60Hz |
| 통신 인터페이스 | RS485, TCP/IP | 주택 자료 | 304 스테인레스 스틸 |
| 개시 / 폐점 시간 | 0.2S | 팔 재료 | 10mm 아크릴, 강화 유리 또는 강철 |
| 액세스 모드 | 단일/아웃 또는 양방향 | 패스 스루 너비 | 900mm |
| 기구 | DC 브러시드 모터+클러치 또는 서보 모터 | 적외선 센서 | 6 ~ 10 쌍 |
| 최적의 유량 | 40 명/분 (오픈), 35 명/분 (폐쇄) | 재설정 시간 | 기본 10 |
| 작동하는 습도 | 30%~95% | ||
| 강조하다 | Intelligent Full Automatic Security Turnstile Gate,QR Code Reader Security Turnstile Gate,1-2 Year Warranty Security Turnstile Gate |
||
제품 설명

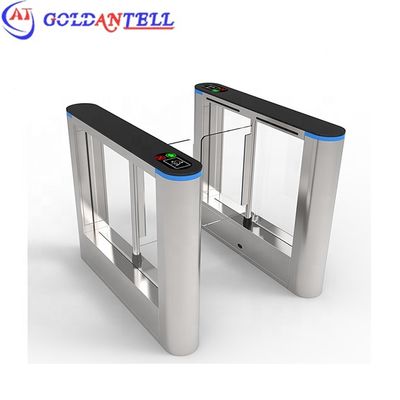

Intelligent Full Automatic QR Code Reader Barrier Swing Gate
ShenZhen face scanner pedestrian channel barrier with advanced access control features
Description Of Barrier Swing Gate
- Application: Outdoor or indoor installation
- LED indicator light: Green and red lights indicate passing status
- Safety glass panel: Slides open horizontally for clear passage
- Emergency feature: Gate auto-opens during power failure to meet fire safety requirements
- Custom security: Available with high visibility glass panels to prevent climbing attempts
- System integration: Standardized electrical interface compatible with various reading devices
Technical Specifications
| 1 | Cabinet dimension | 1400 (L) x 200 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | 10mm Acrylic, tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough width | 900mm (customizable) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after breakdown | Default 10s (adjustable) |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Key Features
- Adjustable passing time settings
- Anti-tailgating detection with alarm system
- Bicycle delay function for safety
- Multiple control modes including scheduled open periods
- Flexible operation modes (two-way, one-way, or free pass)
- Compatible with various control methods (external button, remote, barcode, IC/ID cards)
Product Variations
- Vertical shape
- Bridge shape (this model)
- Pillar shape (tube type)
- Single motor (for single/multiple passageways)
- Double motors (for multiple passageways)
Ideal Installation Sites
Exhibition halls, Commercial buildings, Parks, Offices, Stadiums, Libraries, Museums
