제품 상세 정보:
결제 및 배송 조건:
|
| 통로 너비: | 550mm-600mm | 패스 속도: | 30-40 명/분 |
|---|---|---|---|
| 전원 공급 장치: | 110~240 V(AC) | 최대 전력 소비: | 60W |
| 빈도: | 50~60 Hz | IP 보호: | IP54 |
| 작업 온도: | -15 ~ 75 ° C | 막대를 제외한 치수: | 1200x300x1000 mm |
| 순 중량: | 150kg | 주택 자료: | 1.5-2mm, 304# 스테인리스 스틸 |
| 모터 드라이브: | DC 브러시리스 모터 | 입력 신호: | DC12V/DRY/CANTURE/RS485/RS232/리모컨 |
| 상대 습도: | 자유로운 ≤95% 응고 | MCBF: | 2,500,000주기 |
| ESD 테스트 범위: | 0.01-1000mΩ (신발), 0.1-35mΩ (손목 스트랩) | ||
| 강조하다: | stainless steel flap barrier gate,flap barrier gate with ESD tester,550-600mm passage flap barrier gate |
||
| Item | Specification |
|---|---|
| Instrument Dimensions | 8 inch LCD monitor |
| Pedal Size | (W) 400mm x (L) 420mm x (H) 20mm |
| Operating Voltage | Input AC220V output DC12V |
| Working Hours | Unlimited |
| Environmental Conditions | Humidity: 0%~90%, Temperature: 5°C~40°C |
| Data Storage | Automatically stores records and ESD test data (except client mode), recording information up to 100,000 or more |
| Test Range and Accuracy |
Left shoe setting: 0.01-1000MΩ, Accuracy ±5% Right shoe setting: 0.01-1000MΩ, Accuracy ±5% Wrist-strap setting: 0.1-35MΩ, Accuracy ±5% |
| Feature | Specification |
|---|---|
| Power Consumption | AC220V, 50Hz/AC110V, 60Hz (optional) |
| Housing Size | 1200*300*1000mm |
| Housing Material | 1.5-2mm, 304# stainless steel, corrosion resistant |
| Net Weight | 150KG |
| Drive Motor | DC brushless motor |
| Channel Width | 500-600mm |
| Pass Speed | 30-40 persons/min |
| IP Protection | IP54 |
| Input Signal Options | DC12V/dry/contact/RS485/RS232/Remote |
| Fail-Safe Operation | Railing-off against power off |
| Working Temperature | -15°C to 75°C |
| Working Environments | Indoor, outdoor |
| Relative Humidity | ≤95% (non-condensing) |
| MCBF | 2,500,000 cycles |
Who are we?
Shenzhen Goldantell Technology Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile, access control system and parking management products, established in 2007. We offer customized products and OEM services with new designs introduced annually.
Where are our customers?
Our turnstiles have been exported to over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.
Yes, we can install RFID card reader systems as well as fingerprint reader systems, token systems, ESD systems, etc.
We provide 12-month quality guarantee with well-trained, English-speaking sales and after-sales service team.
Standard items:
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
Custom items require 3-10 additional working days
We accept TT, Western Union, L/C, and participate in trade assurance programs for order security.
Samples: 3-5 days by air or express
Bulk orders: 7-60 days by sea depending on destination

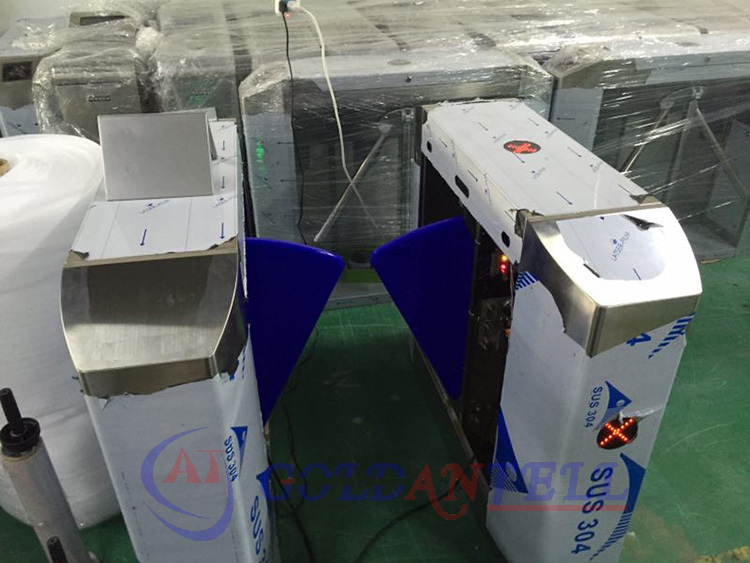

Carton package inside with option of crate package or closed wooden package outside.
We offer comprehensive OEM services including custom turnstile design, logo printing, and retail box customization.
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin | Skype: goldantell02
Goldantell turnstiles - factory price, high quality, welcome your inquiry!
