제품 상세 정보:
결제 및 배송 조건:
|
| 적용: | 회사, 호텔, 공항 | 전원 공급: | 110~240 V(AC) |
|---|---|---|---|
| 방향: | 안이나 밖에나, 또는 2가지 방식 | 보증: | 1년 |
| ODM / OEM: | 받아들여졌다 | 통로 폭: | 600 밀리미터 |
| 모터: | DC 브러쉬리스 모터 |

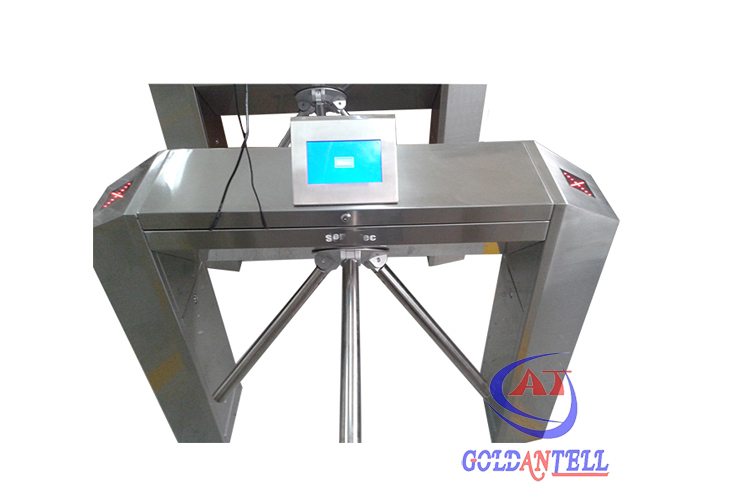

Factory Direct Price Tripod Turnstile Gate OEM/ODM Service
Factory Direct Price Tripod Turnstile Gate Product Description
1.Tripod turnstile gate is compact and cost-effective entrance solutions.
2.The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.
3.Tripod turnstile gate is ideal for indoor and outdoor settings.
4.It can be integrated with any kind of access controller system (e.g.: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).
6.In case of emergency, the tripod turnstile gate will drop down automatically when power off.
| Size | 1200/1400mm (L) * 280mm (W) * 1000mm (H) |
| Working voltage | AC110/220±10%V, 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: | When power off, arms open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃~70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: | standard RS485 interface, distance ≤1200m |
| Housing material | domestic standard 304# stainless steel |
| Input interface: |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
1. Auto replacement function, re-position after person pass by.
2 Anti -tail function auto-lock once turn120° or 60°.
3. Arms auto drop when power off, ensure unblocked when accident.
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.
♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Turnstiles can connect to:
- RFID/Card Readers**
- Biometric Scanners (fingerprint, facial recognition)**
- Mobile Access (Bluetooth, NFC)**
- Ticketing Systems (for metro, stadiums, etc.)
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.
